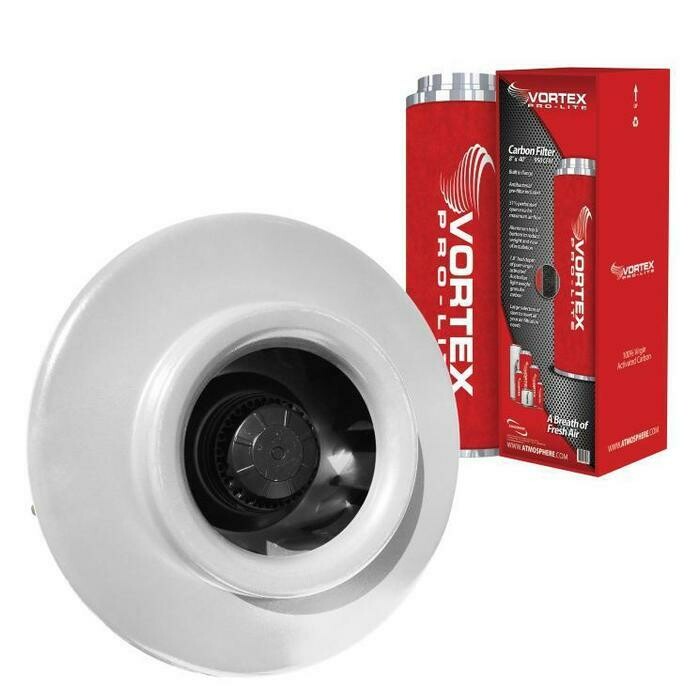

Vortex VBC800 + Pro-Lite Filter 8" x 40"

Store/Atmosphère/Vortex Powerfans/VBC-Series

Product Details

Discover the Vortex Powerfans VBC800 729 CFM 8" Inline Fan by Atmosphere

Vortex Powerfans VBC800 729 CFM 8" Inline Fan by Atmosphere is specifically designed for warm and humid applications. Available in sizes ranging from 4" to 12" and can develop up to 1010 CFM. Every model is built for a connection to a standard round duct.

Carbon filters with built-in 8" flange and an antibacterial pre-filter included. It comes with an Aluminum top and bottom to reduce weight and increase ease of installation. 51% perforated open area for maximum airflow. 1.8" bed depth of pure virgin activated Australian lightweight granular carbon. Large selection of sizes to meet all your air filtration needs.

Detailed Description:

Brackets included for wall or ceiling mount
Permanently lubricated sealed bearings
External rotor motor with automatic reset thermal overload protection
Suitable for airstream temperatures up to 140°F (60°C)
Aerodynamic design allowing more air flow
Airflow capacity from 173 to 1010 CFM
Speed controllable
5-year warranty

All VBC Products incorporate motors suitable for 120 Volts ACHz Electrical supply only.

Duct Dia.	RPM	Volts	Rated Watts	Max Amps	Max Ps
8"	2550	120	205	1.75	3.16"

All Vortex PRO-lite products come with a PREfilter included.
All Vortex PRO-lite have a Max Operating Temperature of 175ºF

Model	8 x 40
Recommended Maximum CFM	950
Flange	8"
Outside Diameter	11.5"
Height	40 in 101 cm
Weight	32.8 lbs
Carbon Bed Width	1.8" (46mm)
Recommended Fan	VTX800, VTX800L, S-800, VBC800
Pressure Drop at Max CFM	125pa /.0.5"wg

Package includes
1x Vortex Pro-Lite Filter 8" x 40" Carbon Filter
1x Vortex VBC800 729 CFM 8" Inline Fan
